Z系列靜態數字式電子汽車衡
靜態數字式電子汽車衡,配置先進的數字式稱重傳感器和智能化數字稱重儀表,具有防作弊、稱重速度 快、精度高、可靠性強等特點;對溫度系數、非線性、滯后和蠕變性能等進行自動數字化補償;儀表功能豐 富,存儲功能強;秤臺釆用u型結構設計,并通過有限元分析軟件進行受力分析結構合理。整體強度和剛度得 到有效保證;秤臺表面采用經過大型拋丸機拋丸除銹處理,極大增強了秤臺的防腐、防銹能力;秤臺生產完全 實現模塊化、標準化、系列化,安裝維護方便。
技術參數
稱重準確度等級:OIML
稱量范圍:10t ~ 200t

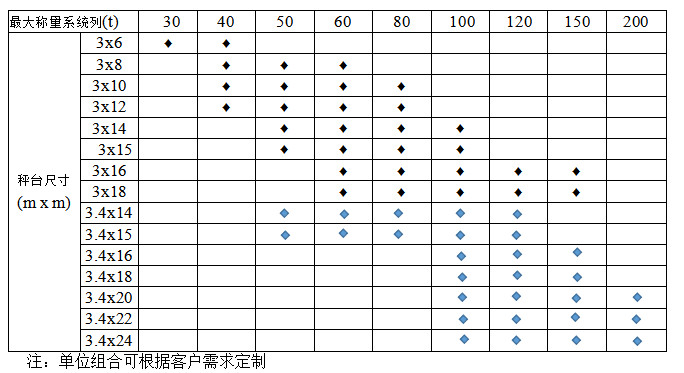

秤臺組合:6m ~ 24m
工作環境濕度:≤90%R.H
工作環境溫度:-10℃~+60℃
工作電源:220VAC(-15%~+10%), 50HZ±2%
安全過載:130%F?S

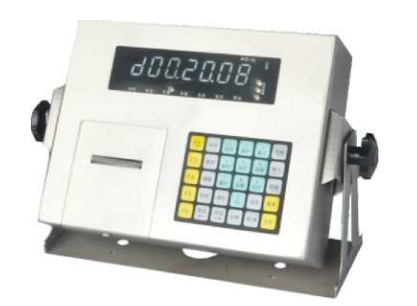

XI2008-D 簡介
D2008系列數字式電子稱重儀表,采用不銹鋼外殼,配置高性能寬電壓開關電源,交直流兩用,適用于1~16個C型或E型數字傳感器的靜態汽車衡系統。

同系列產品:
D2008型(08+FA ) 儀表為橡膠按鍵;
D2008型(08+FP ) 儀表為橡膠按鍵; 內置熱敏微型打印機;
D2008型(08+FP1 ) 儀表為橡膠按鍵;內置針式微型打印機;
D2008型(09FA ) 儀表為橡膠按鍵;浮地設計;
D2008型(09FP ) 儀表為橡膠按鍵;內置熱敏微型打印機,浮地設計
D2008型(09FP1 ) 儀表為橡膠按鍵;內置針式微型打印機,浮地設計
特點及基本功能:
具有2種自動組網方式;
儀表與傳感器通訊支持加密功能;
支持Modbus-RTU協議;
具有文本信息可輸入、可打印功能;
自動調角差功能和手動調角功能;非線性修正功能; 數字傳感器內碼查看功能;數字傳感器狀態檢測功能;
配置大屏幕接口;串行通訊接口;配置標準并行打印接口,可自定義打印格式;
PC串口自檢功能;恒流源智能充電保護功能;
全面配置EMC電磁兼容防護措施;
主要技術參數:
準確度等級:
級
誤差分配系數:pi=0.5
分度值:1、2、5、10、20、50、100可選
數字傳感器接口:RS485方式,最大傳輸距離V75米
傳輸速率∶E 協議19200 bps,C協議9600bps;
數字傳感器供電電源∶DC12V/~750mA
數字傳感器連接數量∶1~16個
數字傳感器通訊協議∶柯力E協議或柯力C協議
顯示:7位LED數碼管,7個狀態指示符;
大屏幕接口∶20mA電流環恒流源串行輸出,傳輸距離<100米;
串行通訊接口:配置標準RS232,RS485,波特率600-19200可選
打印機接口:配置標準并行打印接口,推薦ESPONLQ-300K/300K+
II、ESPONLQ680/730/1600K,松下KX-P1121/1131,得實DS300/2600寬行打印機;
數據貯存∶可貯存1500組車號皮重,201組貨號和中英文貨物名,100組客戶號及中英文客戶名,100組數字或中英文備注信息,可貯存2400組稱重記錄。
儀表電源∶交流110-220V,50Hz;
輔助電源:DC12V/7Ah免維護蓄電池(隨機充電)
外型∶339x 110x230 mm
自重:約3.6公斤
Introduction
D2008 Series Digital Weighing Indicator is with stainless steel housing,configure with high performance,wide voltage switch power supply.AC/DC both is possible,suitable for static weighing truck scale system with 1-16pcs C type or E type digital load cells.
D2008-FA is with rubber keys cover;
D2008-FP is with rubber keys cover, inner thermal micro printer;
D2008-FP1 is with rubber keys cover, inner pin type micro printer;
D2008-FB is with stainless steel keys;
D2008-FBP is with stainless steel keys, inner thermal micro printer;
D2008-FBP1 is with stainless steel keys, inner pin type micro printer;
Characteristics and descriptions:
It has two kinds of auto networking methods
The communication between load cells and indicator could be encrypted;
Support Modbus-RTU protocol;
With text information input and printing function;
Automatic and manual corner-difference adjustment;
Non-linearity adjustment function;
Digital load cell inner code checking function;
Digital load cells' inspection function;
With scoreboard interface;
With serial communication interface;
With standard parallel print interface,user-dened printing loa
PC serial port self-checking function;
Constant current smart recharge protection function;
EMC Protection measurement totally set;
Main technical parameter;
Accuracy Grade:
n=3000
Error Partition Coefficient:pi=0.5
Division Value:1.2.5.10.20.50.100 available
Load cell interface:RS485 Mode, Maximum Transmission distance<75 meters
Transmission speed:E protocol 19200 bps, C protocol 9600bps;
Load cell power supply:DC12V/750mA
Load cell numbers: 1~16pcs
Load cell communication protocol:Keli E protocol or Keli C protocol
Display: 7 bits LED,7 bits status indication;
Scoreboard interface:20mA current loop series serial output,baud rate 600, transmission distanced≤100m;
Serial communication interface: With standard RS232, RS485,Baud rate 600~19200 Optional
Printer interface:With standard parallel printing interface,ESPON LQ-300K/300K+∥\ESPONLQ680/730/1600K,Panasonic KX-P1121/1131,DS300/2600 wide-line printers etc;
Data storage:Tare weights of vehicle ID:1500 groups,Cargo name:201 groups,
Customer Name:100 groups, Remarks:100 groups. Weighing record:2400 groups Power supply:AC110-220V,50Hz;
Assistant power supply:DC 12V/7Ah Maintenance-free battery(can charge by indicator)
Size:339x110x230mm
Net Weight:About 3.6kg
Z系列傳感器介紹XLZF-D


![]()

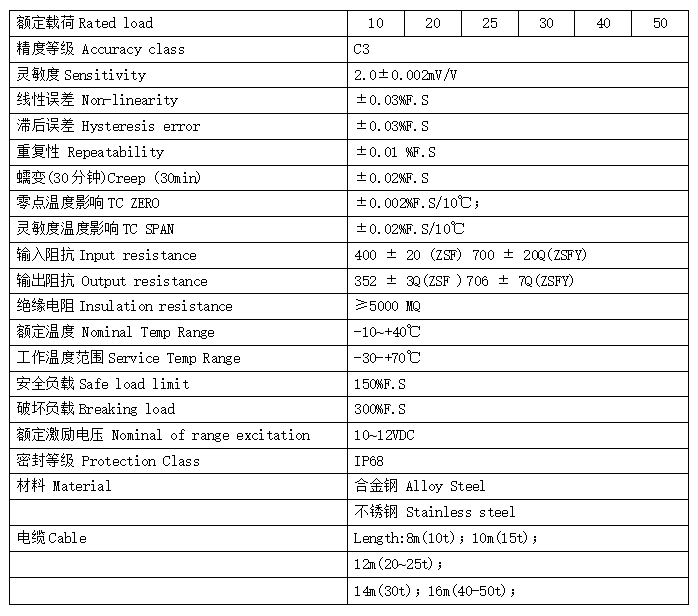

TECHNICALPARAMETER
4Wires:Exc+(紅,Red);Exc-(黑,Black);Sig+(綠,Green);Sig-(白,White)
